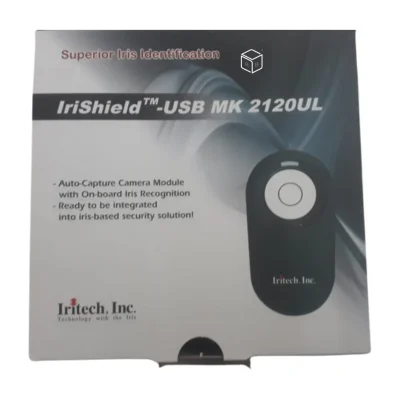

Iritech Irishield MK2120UL Single USB Iris Scanner for Aadhaar Authentication

Specification

• • Product

  • Brand: Iritech

  • Model Number: MK2120UL

  • Warranty: 1 year

  • Origin: South Korea

  • Manufactured by: Iritech, Inc.

• • OS Support & System Requirements

  • OS Support: Windows, Android

  • Key Functionalities: On-board Template Generation; 1:1 and 1:N Template Matching On-board PKI security functions

  • Memory: 64 MB NAND Flash Memory, 128 MB Mobile DDR SDRAM

• • Images & Capture

  • Sensor Type: Single iris sensor

  • Capture Mode: Auto capture with built-in quality check (using NIST IQCE and ISO 29794-6 quality metrics)

  • Capturing Distance: 15 cm (5.91 in)

  • Resolution: VGA

  • Illumination: Infrared LED

  • Grayscale: 8-bit grayscale

  • Image Size: 640 x 480 pixels

  • Image Formats: ISO 19794-6, full support of K1, K2, K3, and K7 Max

  • Scan type: Progressive, SNR: ≥ 37 dB

  • FBI / Image Certifications: STQC certified

  • Pixel Density Normally greater than 210 pixels across iris diameter

  • Quality Scoring: NIST-proven iris image quality assessment algorithm

• • Weight & Dimensions

  • Product Weight:

  • Dimensions: 51.2 mm x 92.6 mm x 15.1 mm

  • Spatial : ≥ 60% @ 4.0 Lp/mm, Pixel : ≥ 16 Pixels/mm

  •  Radiant Intensity: 0.2 mW/cm2 (700-900 nm)

• • Power & Connectors

  • Interface: USB 2.0

  • Connector Type: USB

  • Power Source: Single USB Bus Powered (DC + 5V ± 5%)

  • Max power consumption = 300 mA

• • Conformance & Certifications

  • USB Certification: Yes

  • FCC/CE/UKCA Conformance: FCC Class B

  • Equipment Safety: Eye safety standard (IEC 62471:2006-07)

  • Hazardous Material: RoHS compliant

  • Security: RSA (2048-bit) and AES (256-bit); X509 Certificate, PFX/PKCS#12 Certificate, RSA key pair generated on-board

• • Temperature & Humidity

  • Operating Temperature: 0°C to +50°C

  • Humidity: 10% to 90% (non-condensing)

  • Storage Temperature: -20°C to +60°C

• • Surface & Systems

  • Ingress Protection / Water / Dust: IP54 rated

• • Compliance & Regulations

  • FCC: Yes, FCC Class B

Features

1. Secure Data & Communication: Each IriShield device is equipped with a unique 2048-bit RSA key that is securely generated on-board for encryption and digital signatures.

2. Highly Accurate Iris Matching: Utilizes a NIST-proven iris matching algorithm known for its exceptional accuracy.

3. STQC Certified: Certified as an authentication device by the Standardization Testing and Quality Certification (STQC) authority.

4. Tamper-Proof Design: Built to prevent unauthorized access and tampering, ensuring the integrity of the device.

5. Versatile Interface Connections: Supports USB connections for easy integration with various systems.

6. Wide Operating System Compatibility: Compatible with a range of operating systems, including Android, Windows, WinCE, Linux, eLinux, Mac, and proprietary or non-OS environments.

Note: Before using the device, please check the app specifications to ensure compatibility. All government-based project apps support this device.
